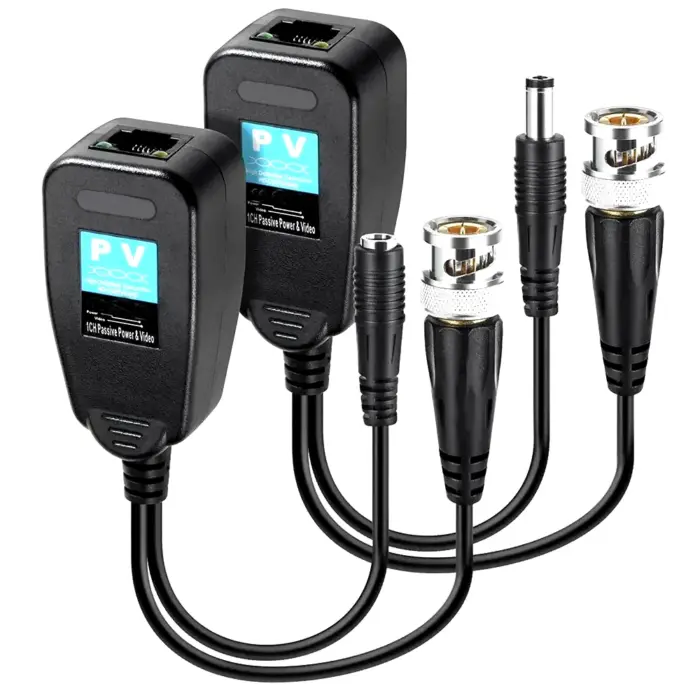

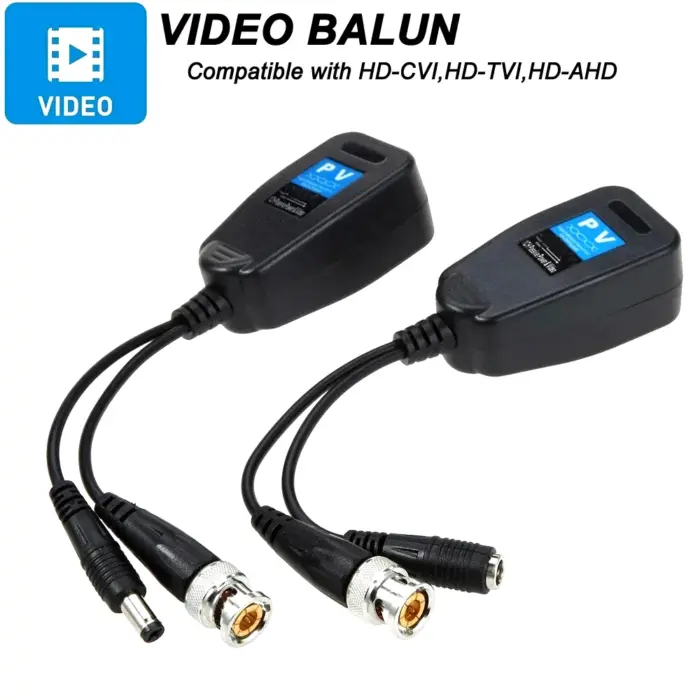

1CH Passive Balun RJ45 CCTV Video Transceiver Coax BNC Supply Power Connectors For HDCVI HDTVI AHD Analog High Definition Camera

Product Features:
* Power & Video Balun:Gold Plated BNC is provided withbetter transmission quality and long distance HD transmiter.
* Super Extensive Applications:Support all video devices,such as camera, monitor, DVR card and recorder etc.Compatible with all digitalCVI, TVI and AHD Cameras.
* Video transmission Via UTP CAT5:LED indicate whether working (green light) or not working(yellow light) by RJ45.
* Easy to install:We provide a specification which has detailed installation steps make the procession of installation simple and convenient.

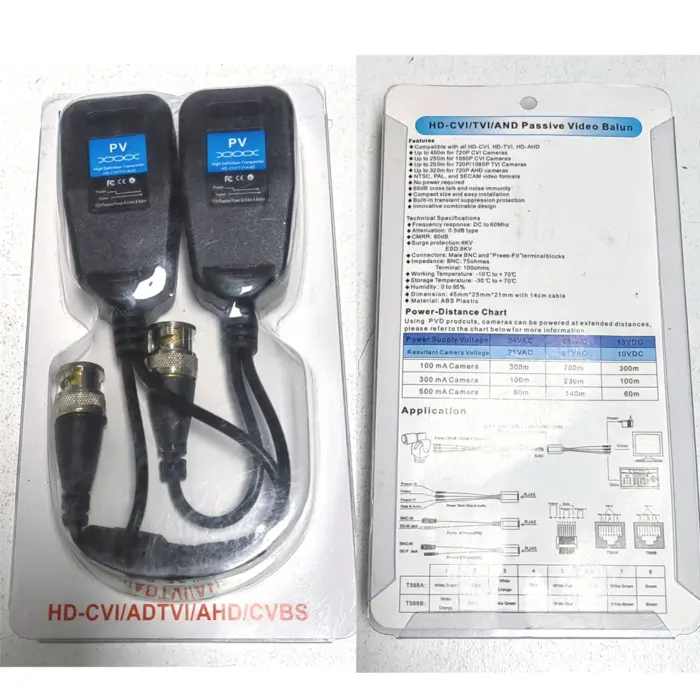

Package Include:
1 Pair VIMVIP HD CCTV CVI/TVI/AHD Video Balun
1CH Passive Balun RJ45 CCTV Balun Video Transceiver Balun Coax BNC Supply Power 1 Pair(2pcs) Connectors For HDCVI HDTVI AHD Analog High Definition Camera Video Cam
Product Description
This Video Transceiver with Power is a passive
(non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair(UTP)telephone wire. Baseband (composite) signals of any type are supported.

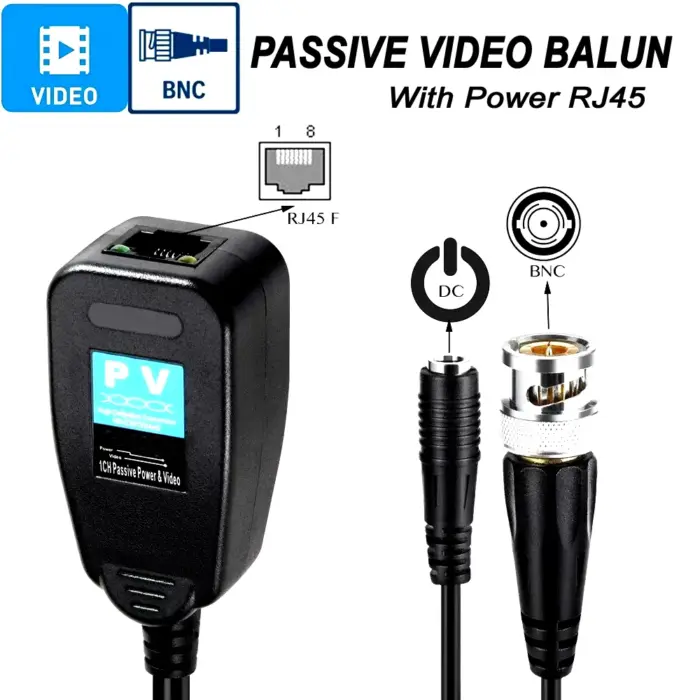

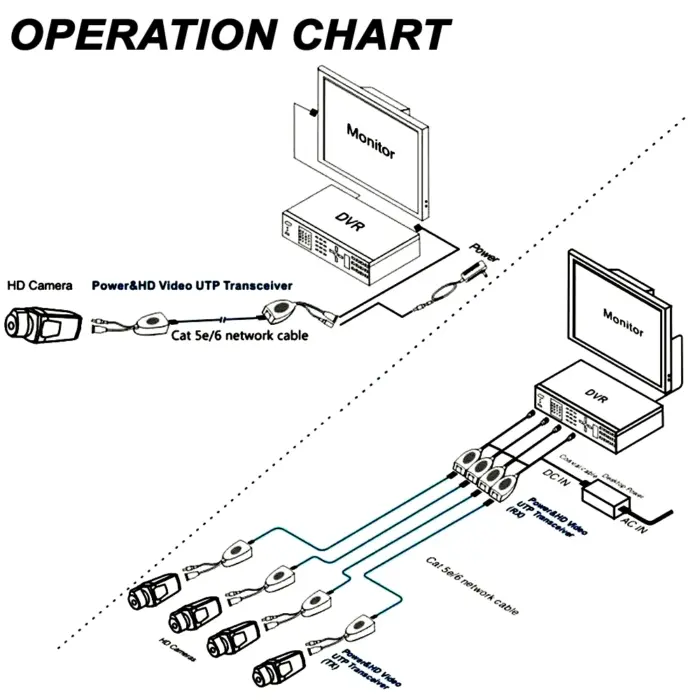

This video transceiver allows transmission of CCTV video and low voltage power over UTP cable.Power and Video are routed via UTP and RJ45 connections.
Its unparalleled interference rejection and low emissions allows video signals to co-exist in the same wire bundle as telephone, datacom,or low-voltage power circuits. This allows the use of a shared or existing cable plant.
Features:
100% brand new and high quality.
Compatible with all HD-CVI, HD-TVI,HD-AHD.
Up to 450m for 720P CVI cameras.
Up to 250m for 1080P CVI cameras.
Up to 250m for 720P/1080P TVI cameras.
Up to 320m for 720P AHD cameras
NTSC,PAL, and SECAM video formats.
No power required.
60dB cross talk and noise immunity.
Compact size and easy installation.
Built-in transient suppression protection.
Innovative combination design.
Specifications:
Item Type: 1CH Passive Power & Video Balun plug
Shell Material: ABS
Color: Black
Size: 45×25×21mm/1.77×0.98×0.83in (Approx.)
Cable length: 14cm/5.51in (Approx.)
Frequency response: DC to 60Mhz
Attenuation: 0.5dB type
CMRR: 60dB
Surge Protection: 4KV
ESD: 8KV
Connectors: Male BNC and “Prees-Fit” Terminal
blocks
Impedance:
BNC: 75 ohmas
Terminal: 100 ohms
Working temperature: -10 ° to +70 °
Storage temperature: -30 ° to +70 °
Humidity: (non-condensing) 0-95%
